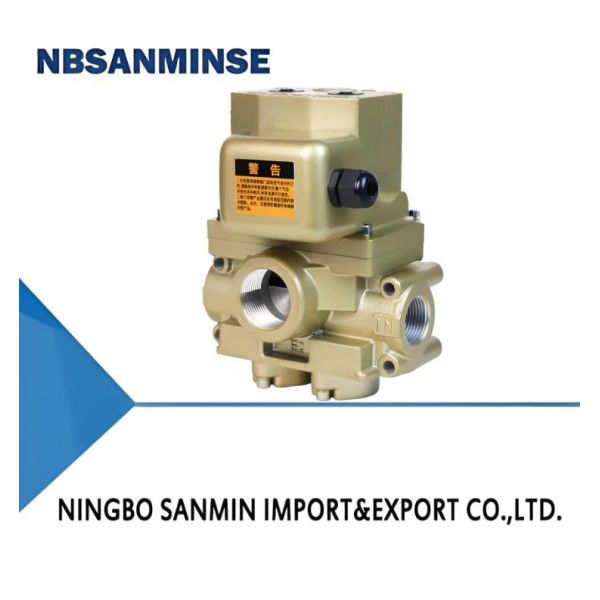

K23JSD-HSCO Series double valves for press machine

Name: K23JSDHSCO Series double valves for press machine
Brand: NBSANMINSE
Price: 1 USD

Brand Name : NBSANMINSE

Model Number : K23JSD-HSCO

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10PCS

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Box

Rated Voltage : DC 24V

Holding Current : 0.32

Power (W) : 7.7

Working temp : 5-40(℃)

working pressure : 0.2-0.7(Mpa)

Contact Now

Features:

K23JSD-L15HSCOis the parallel flow duoble safe valveThis product integratestwo three_-way solenoid valves with

the same function to operate simultaneously, greatly improving the accuracy and safety ofthe stamping machine's

actions.when one of the valve goes wrong as the "OUT"side"s"air pressure is higher than clutch "s"and break-

ar"s”,the press machine will stop runing,It makes the press machine more safe then those that only have one single

solenoid valve.

Order Code:

① Medium: Air

② Circuit Form: 2/3 Way

③ Valve Body Form: Globe Type

④ Dual Valve

⑤ Control Form: Electric Control

⑥ Connection Method: Pipe Connection

⑦ Nominal Diameter: 15SC2, 20G1/4, 25G1, 32G1-1/4, 40 G1-1/2

⑧ Product Model: HSV Series

⑨ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V

Symbols:

K23JSD-HSCO Series double valves for press machine

Outlook Dimension:

Type	Nominal Diameter	IN	OUT	EX	M	N	L	G	H	F	E
K23JSD-L15HSCO	15	G1/2	G1/2	G3/4	80.5	154	183	128	35	130	65
K23JSD-L20HSCO	20	G3/4	G3/4	G3/4	80.5	154	183	128	42	130	65
K23JSD-L20HSCO	20	G3/4	G3/4	G1-1/4	102	165	205	140	52	130	72
K23JSD-L25HSCO	25	G1	G1	G1-1/4	102	165	205	140	52	130	72
K23JSD-L32HSCO	32	G1-1/4	G1-1/4	G2	125	259	295	217	77	128	110
K23JSD-L40HSCO	40	G1-1/2	G1-1/2	G2	125	259	295	217	77	128	110

Specification:

AC voltage:

Valve Type	K23JSD-HSCO	K23JSD-HSCO	K23JSD-HSCO	K23JSD-HSCO	K23JSD-HSCO	K23JSD-HSCO
Rated Voltage	AC100V 50HZ	AC100V 60HZ	AC110V 60HZ	AC200V 50HZ	AC200V 60HZ	AC220V 60HZ
Starting Current	0.29	0.25	0.27	0.14	0.12	0.13
Holding Current	0.15	0.12	0.15	0.08	0.06	0.07
Power Consumption (W)	8	7	9	8	7	9

DC voltage:

Valve Type	K23JSD-HSCO
Rated Voltage	DC 24V
Holding Current	0.32
Power Consumption (W)	7.7

Product Tags:

double solenoid valve for press machine

pneumatic double valve with warranty

K23JSD-HSCO series pneumatic solenoid valve

Wholesale K23JSD-HSCO Series double valves for press machine from china suppliers

K23JSD-HSCO Series double valves for press machine Images
